2020+ Hilux Intercooler

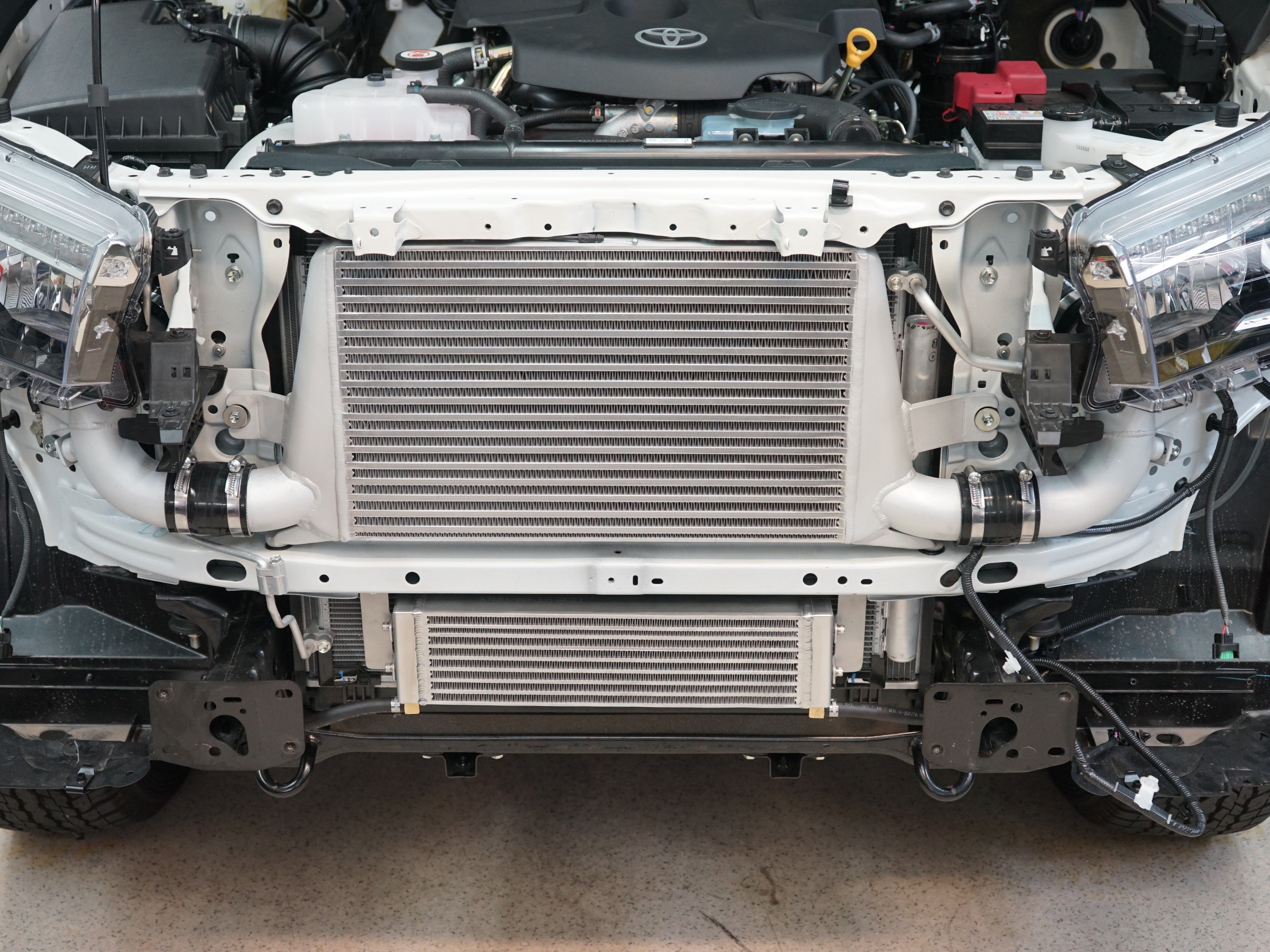

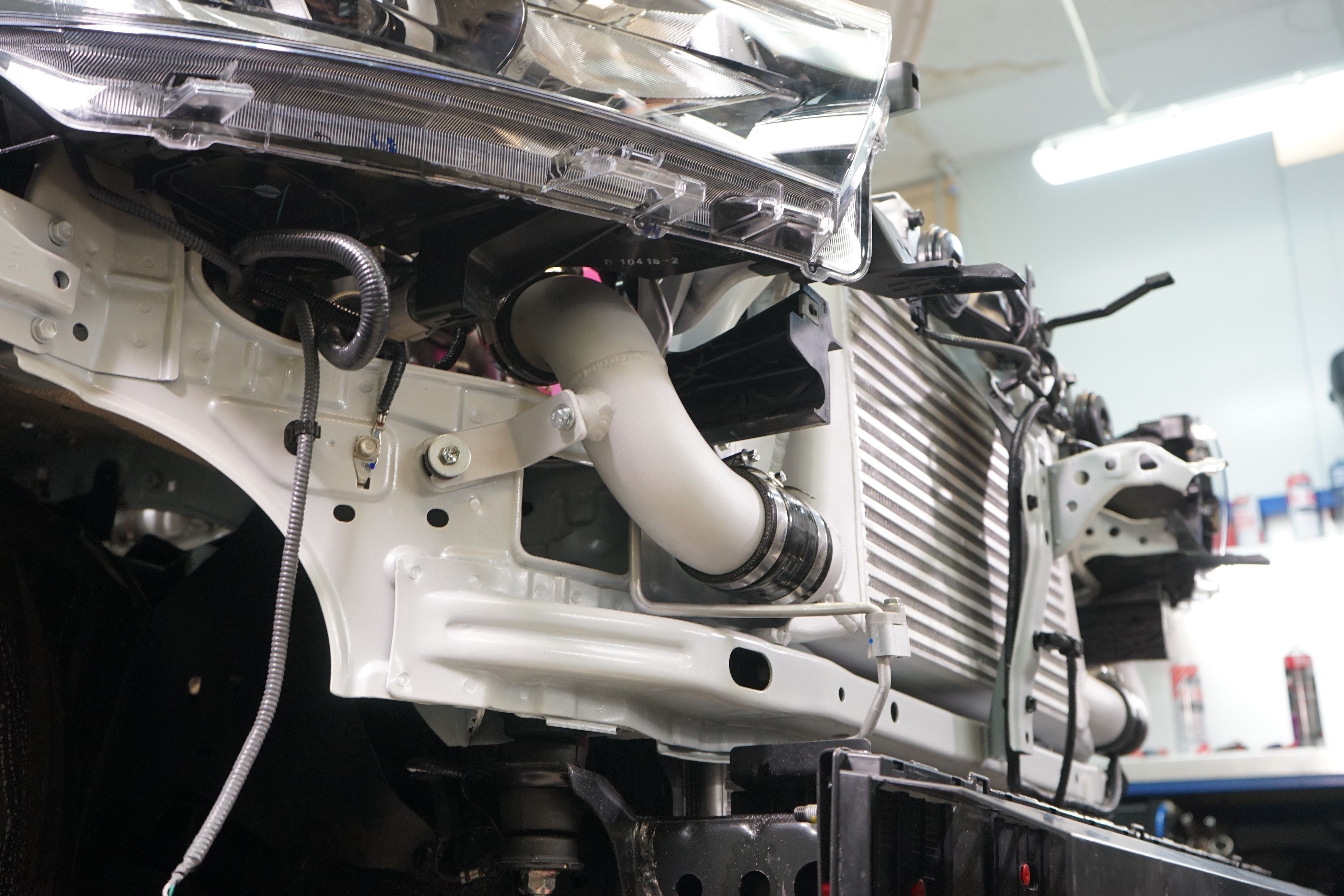

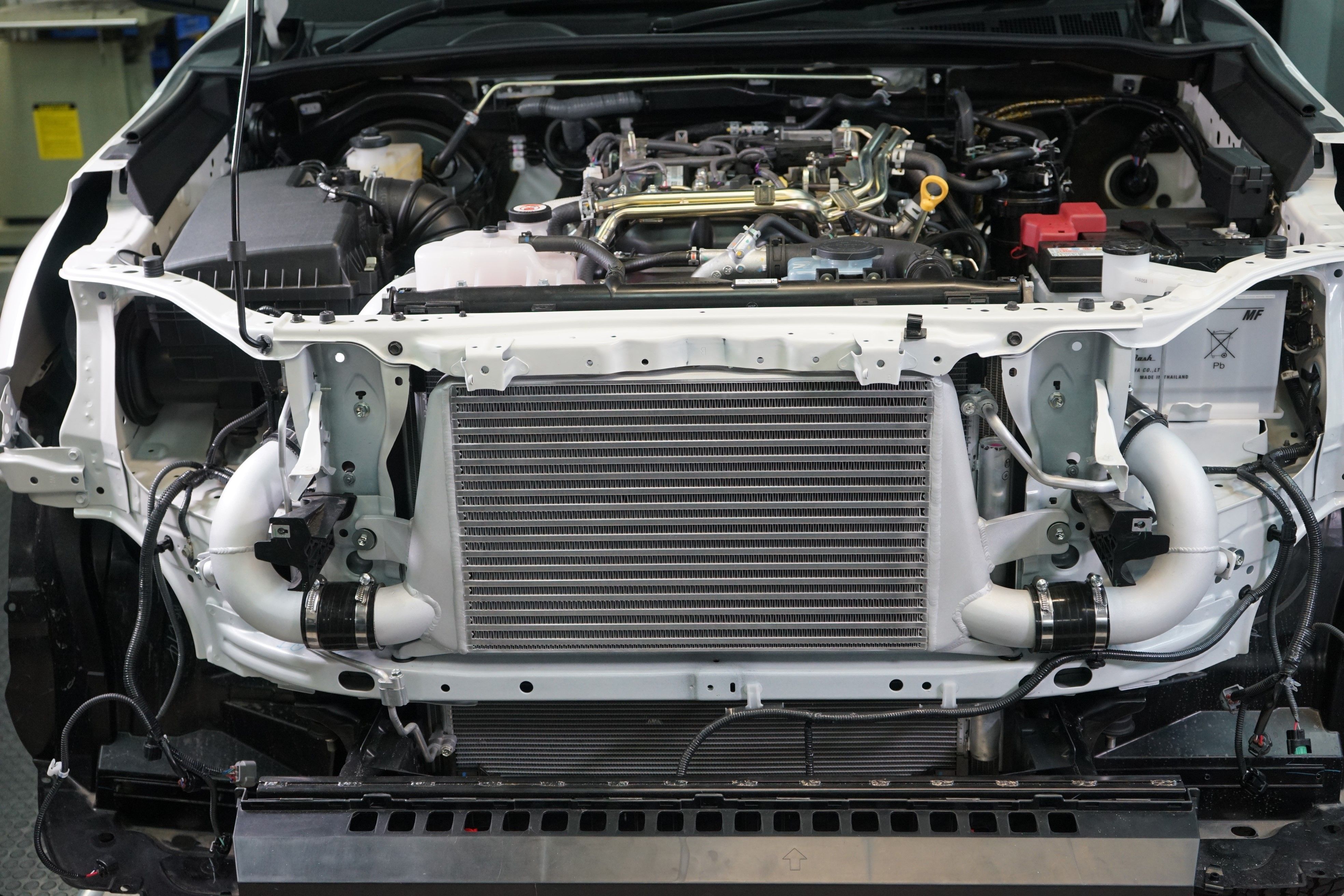

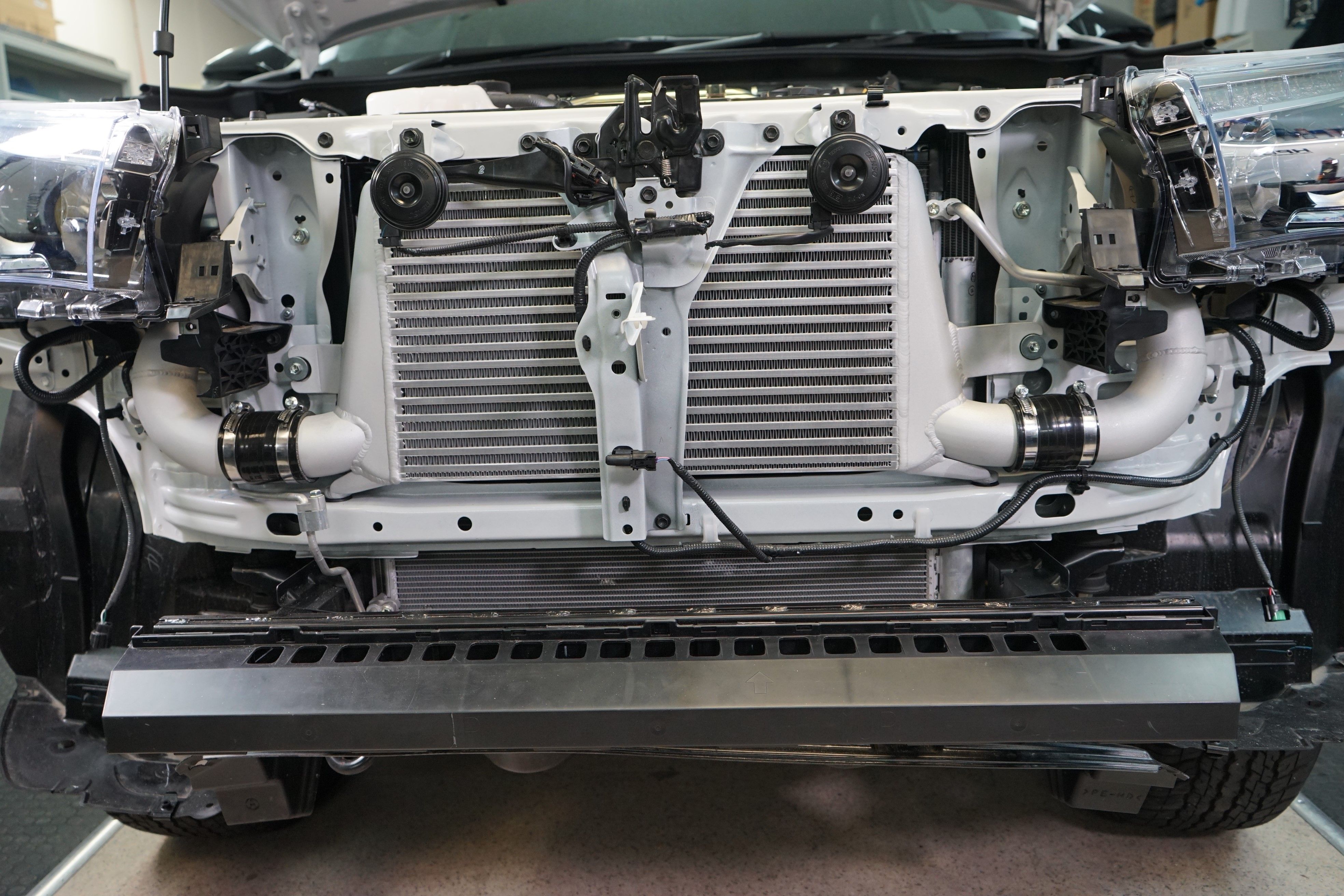

This front-mount intercooler kit is designed for the drivers chasing increased and sustainable torque and power from their N80 GUN126R 1GD-FTV Hilux. The intercooler provides better cooling ability and airflow all-round and is easily capable of supporting modifications producing upwards of 200kw at the wheels.

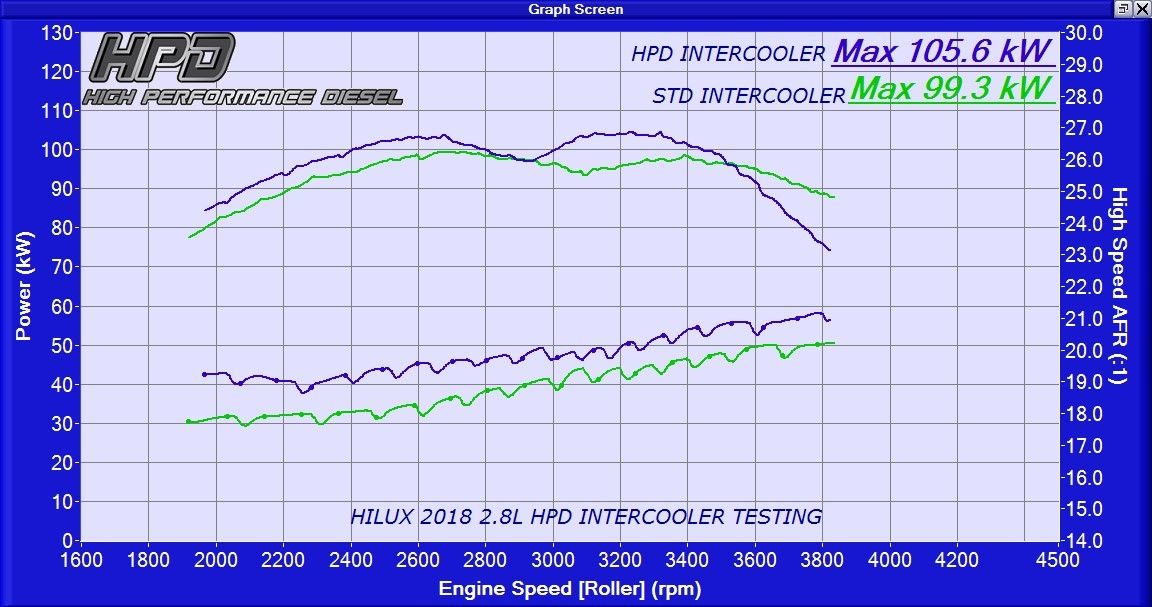

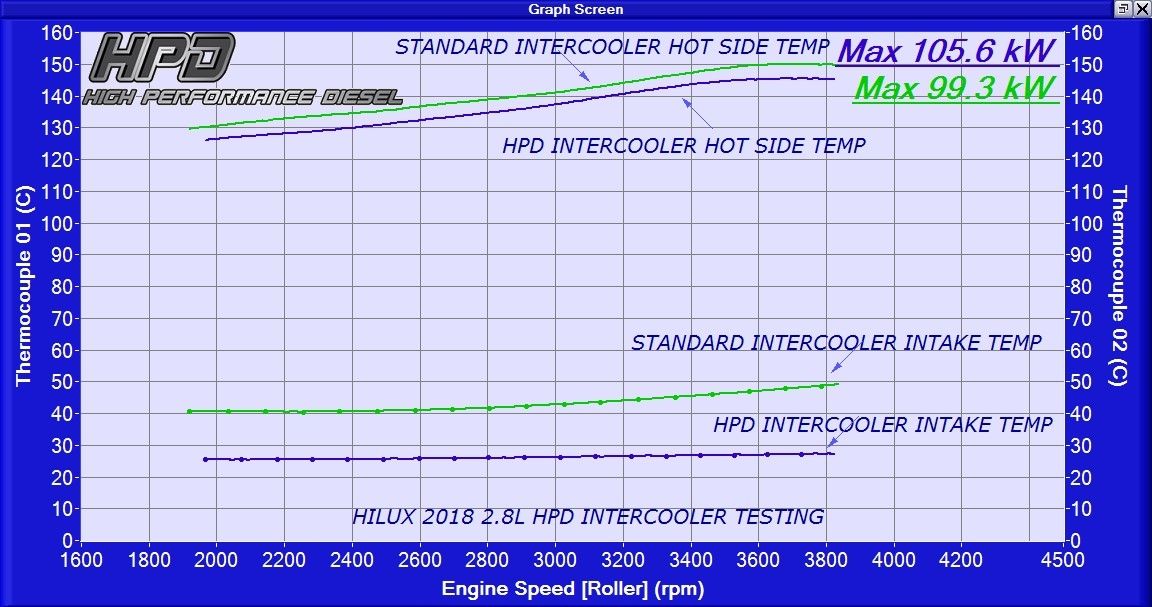

We've recorded reduced inlet temps by 20°C and a 6kw power increase at the wheels with a standard tune . It also improves the factory air/fuel mixture, allowing for safe increases to fuel mix when tuning.
The factory Toyota intercooler core size is 640x150x60mm, giving a surface area of 960cm², and a volume of 5760cc.
Our intercooler measures 500x300x76mm, giving a massive surface area of 1500cm², and a huge volume of 11400cc.
That's a 56% increase in surface area cooling, and almost twice the volume at 98% increase!
HPD 4WD intercooler kits are designed to give amazing performance, reliability, consistent and sustainable power. By reducing inlet temperatures, you will also reduce engine running temperatures.

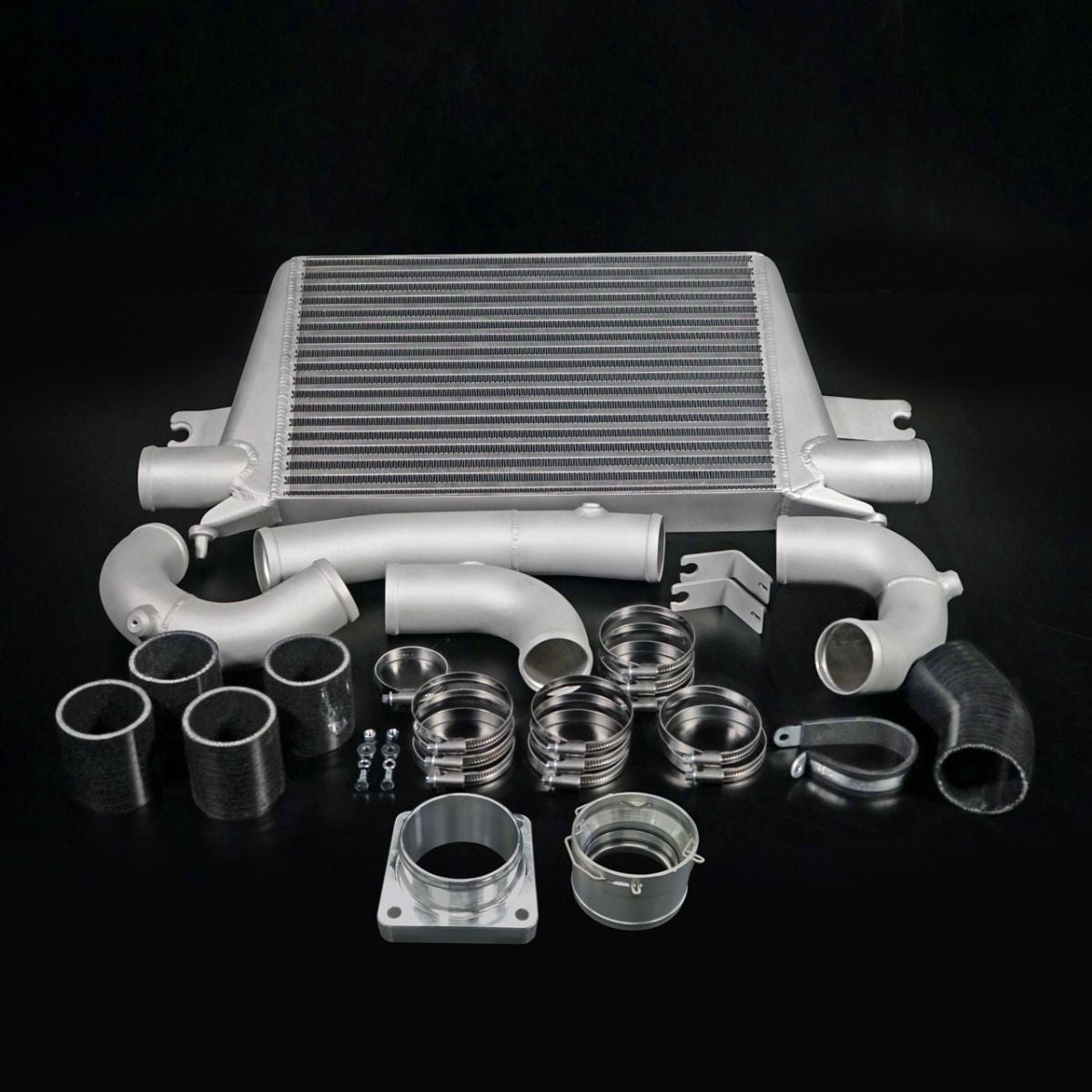

- Bar & Plate Core 500x300x76mm
- Alloy mandrel bent piping
- Quality silicone hoses
- CNC billet mounting boss
- German-made load rated clamps
- Intercooler piping 63mmø
- Stainless steel laser cut brackets
- Australian made supporting local jobs
