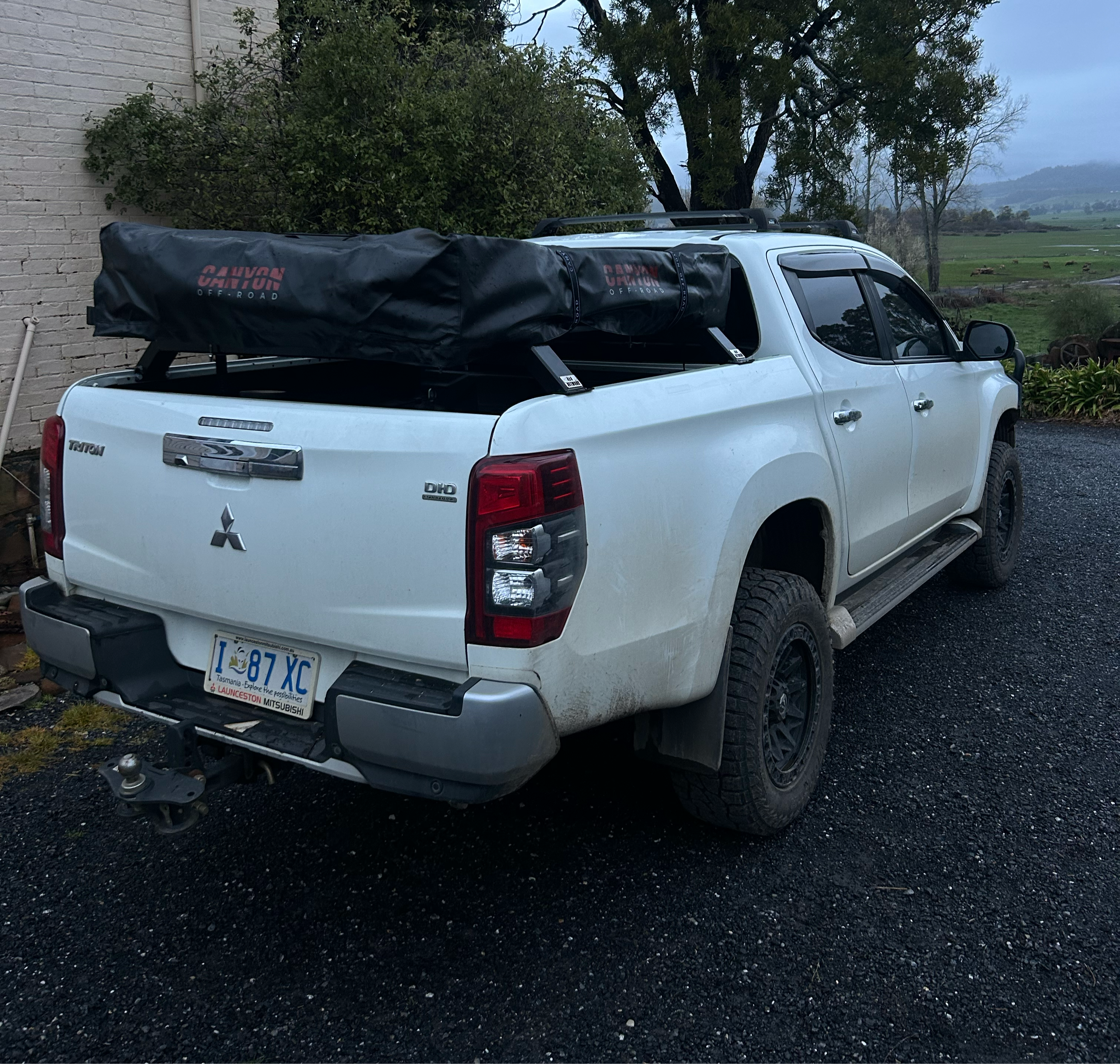

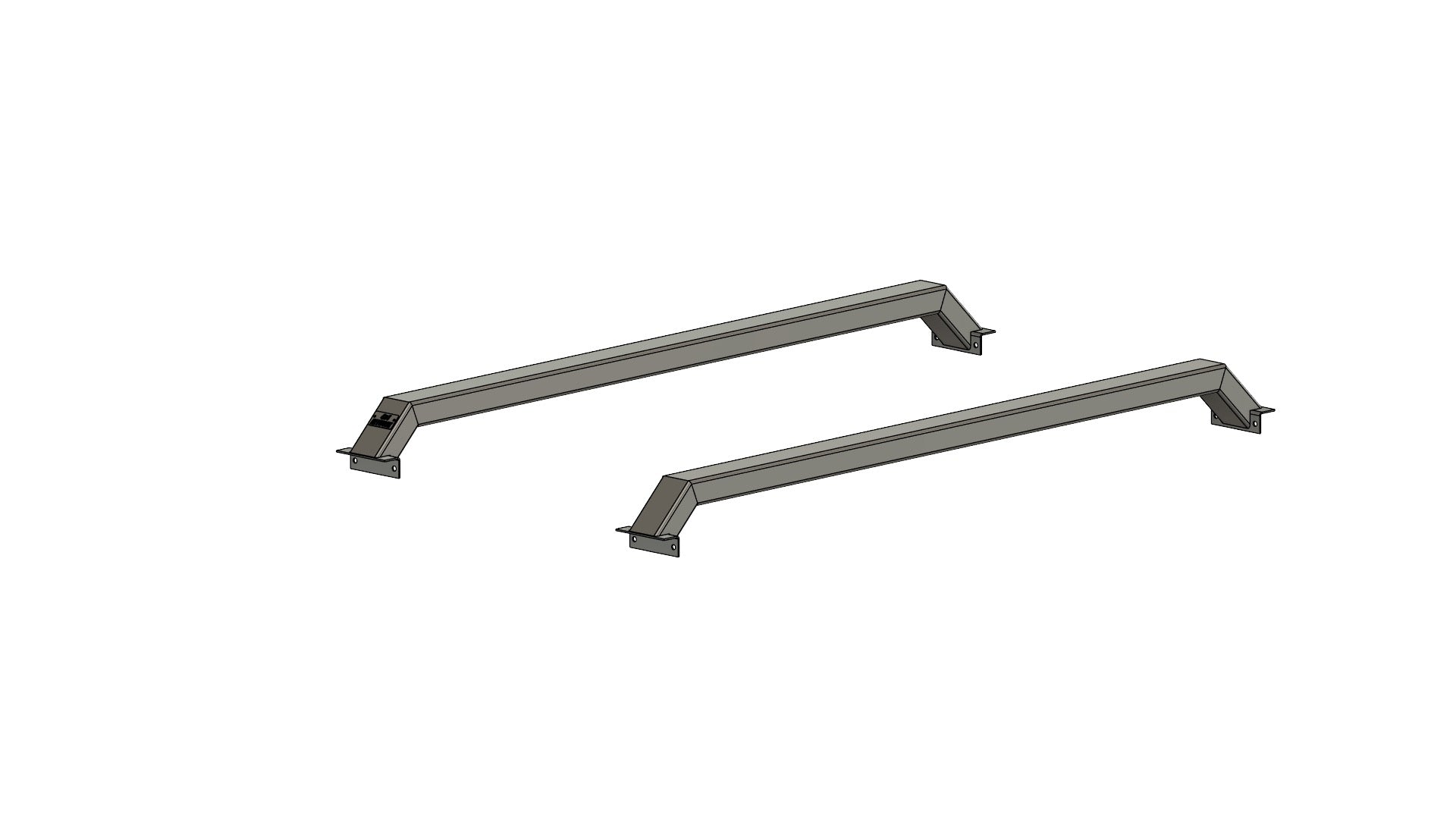

MQ & MR Mitsubishi Triton (2016-2024) Low Profile Tub Racks

Changing the practicality and aesthetic of tub racks

Built for adventurers, tradies, and weekend warriors – the 4x4Network Low Profile Tub Racks are designed for those who need tough, lightweight gear that doesn’t compromise on looks.

Each rack is TIG welded by hand on the Sunshine Coast using locally sourced 3mm 6061 aluminium (75x50mm), ensuring strength without unnecessary weight. Sitting just 100mm above your tub rails, this setup delivers a sleek, low-profile look with serious functionality.

Finishes:

• Raw Alloy (Unpolished)

• Textured Black Powder Coat

• Satin Black

⚠️ Raw Finish Notice: Our raw aluminium finish is uncoated and may include visible marks, scratches, or tooling lines from the fabrication process. This is a normal part of a raw, industrial-style finish. If you prefer a clean or refined look, we recommend choosing one of our powder-coated options.

How to Fit:

Supplied with 10mm nuts, bolts, and washers. Installation requires drilling into your tub. (Holes may need to be re-drilled due to powder coating thickness)

Load Ratings:

• Dynamic: 200kg

• Static: 300kg

Note: These ratings apply to the rack itself – your tub may have lower limits. Always refer to your vehicle’s specs or contact a dealer. 4x4Network is not liable for damage caused to your factory tub from overloading.

Lead Time: 3 weeks

Warranty: 1 Year Manufacturing
